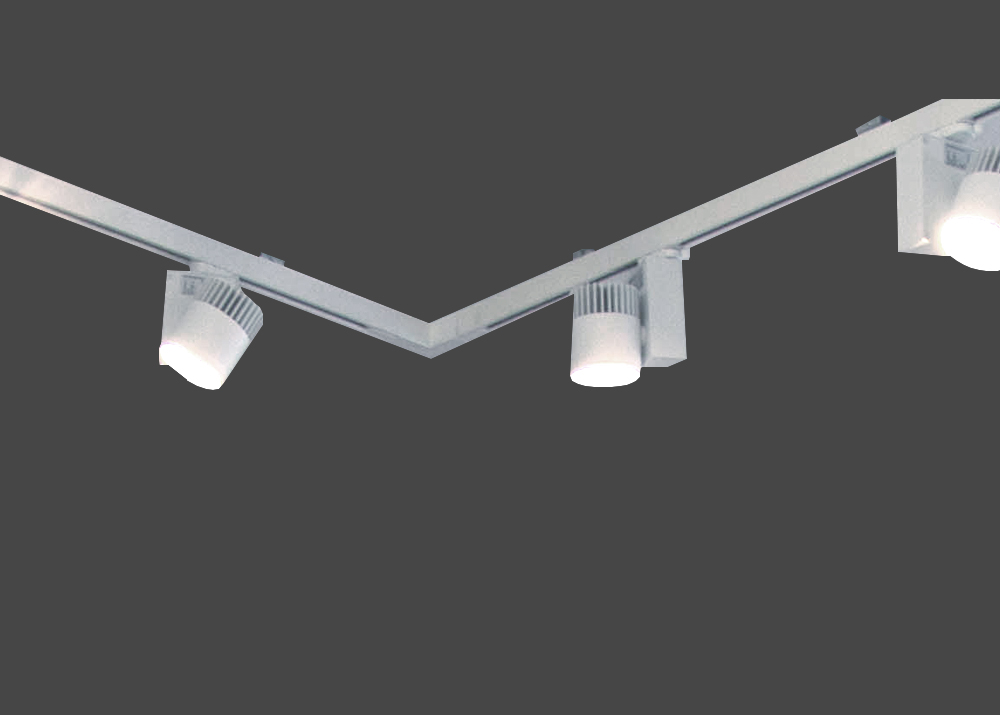

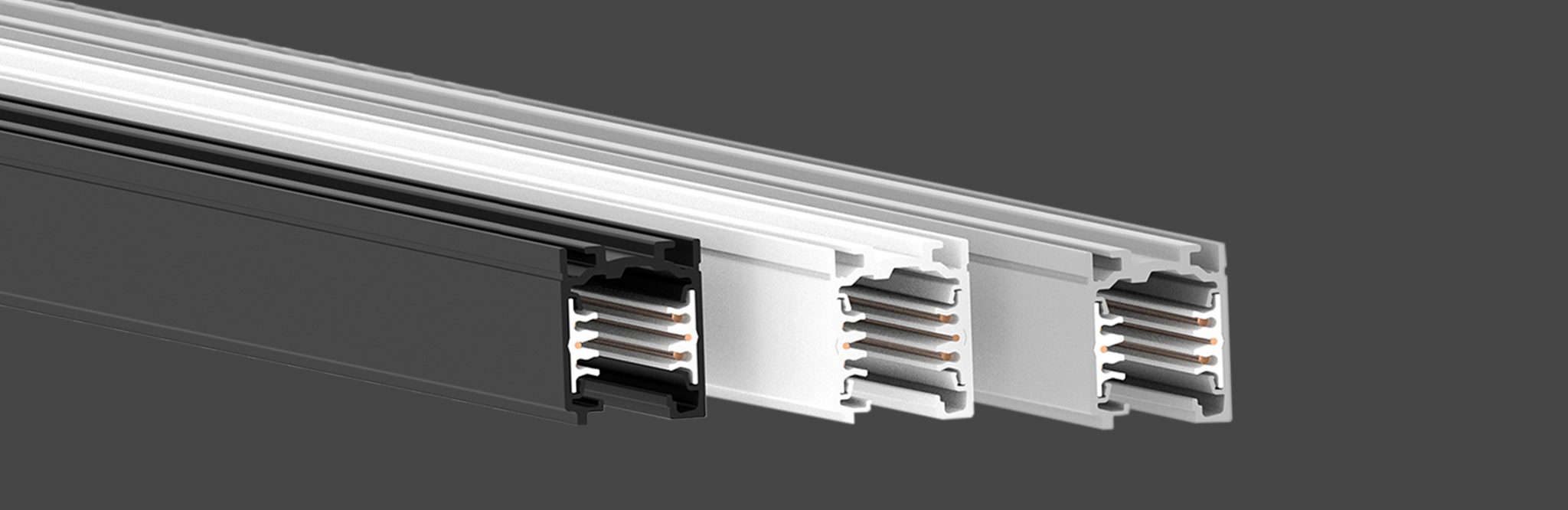

Power track – STUCCHI – One Track Advance
Create unique lighting environments with future-proof 3-phase track system. Fits together with most established adapters on the market. Works like regular 3-phase track but with a twist. Used in all Tego-specific and customized accessories for our ceilings.
FUTURE-PROOF
THREE IN ONE
ONETRACK Advance comes prepared with two extra control wires. This allows for three different scenarios; 1-phase+DALI, 3-phase and 3-phase+DALI.
REDUCE, REUSE, RECYCLE
FULL FUNCTIONALITY, REDUCED FOOTPRINT
ONETRACK Advance’s design and manufacturing process is optimized and customized with tomorrow in mind. Compared to the previous variant, the use of raw materials is reduced by -23% and the CO2 footprint has been reduced by -25%.

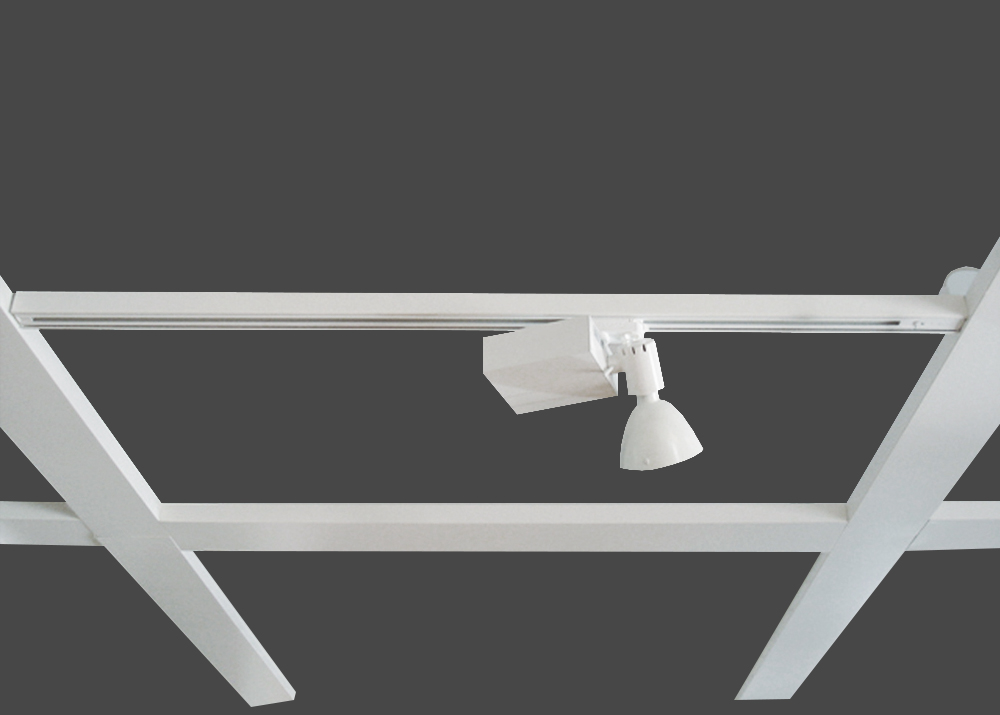

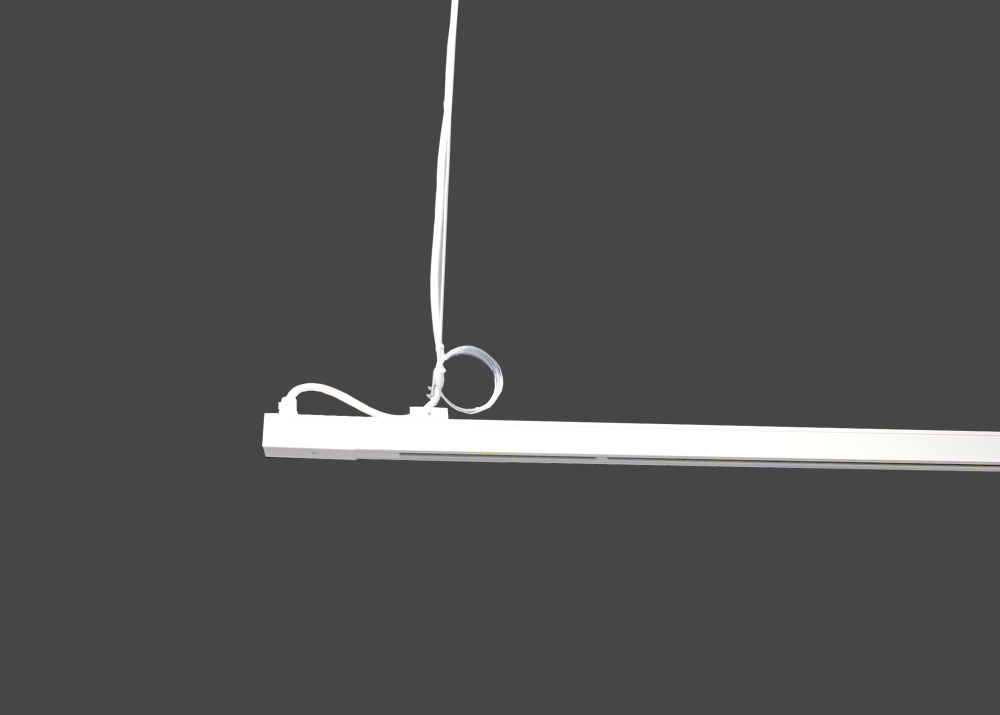

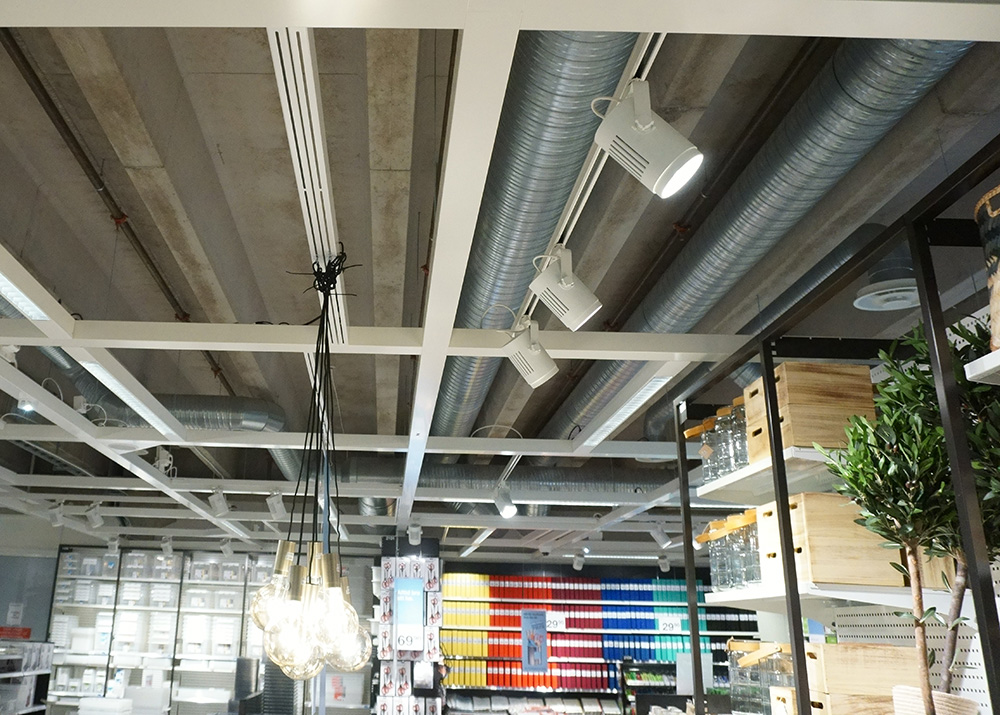

Flyttbar Strömskena
Custom designed solution that provides maximum flexibility in Tego's System Ceiling. The power track is hooked over the edge of the channels and the length is adjusted according to the length of the module.

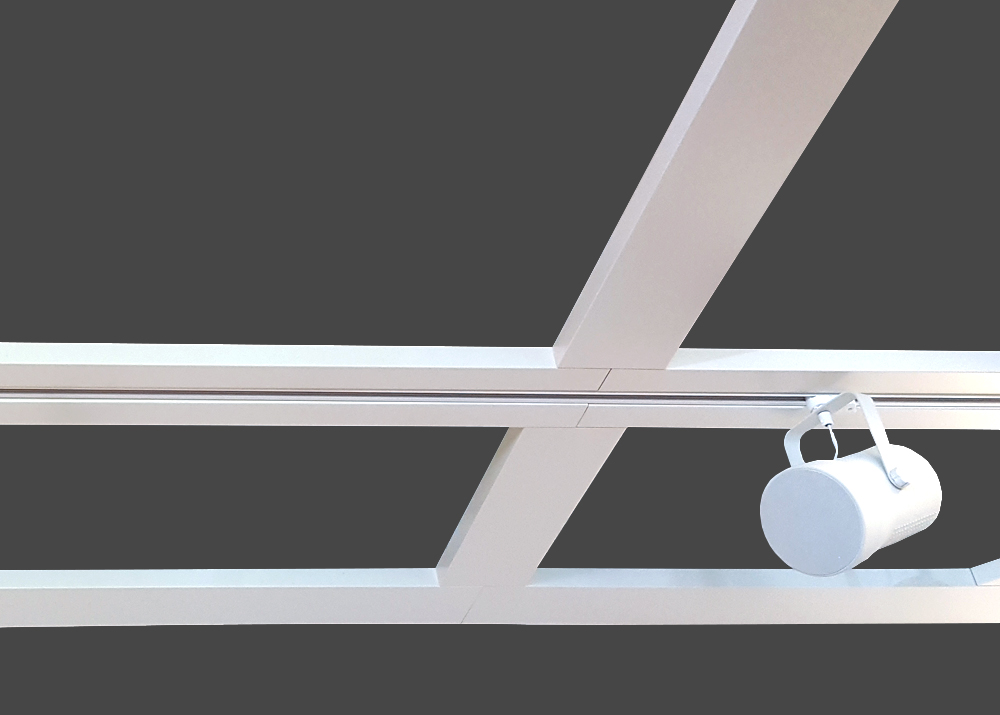

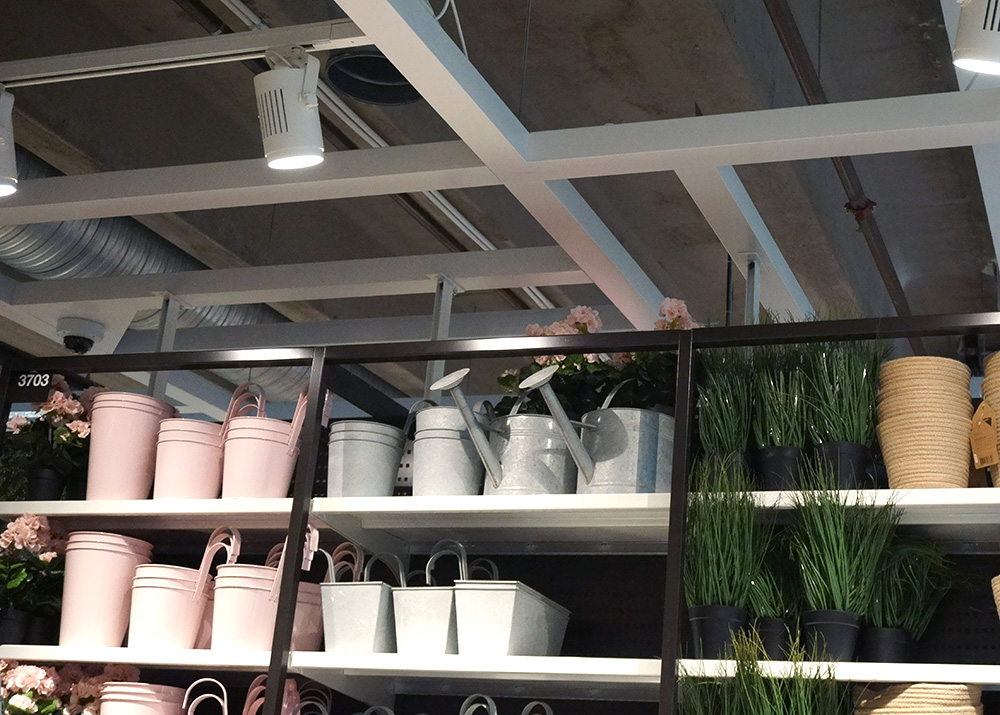

Integrerad Strömskena / Dikt
The power track can be folded into the ceiling for a "cleaner" look.
Make
A.A.G. STUCCHI
Number of pins
7, (3-phase + DALI)
Lenght
1/2/3/4m
Material
Aluminium
Color
White RAL9010
Black RAL9005
Grey Anodized EN5
Frequency
50-60Hz
Rated current and voltage
16A-440V
Safety class
Class 1
IP-rating
IP20

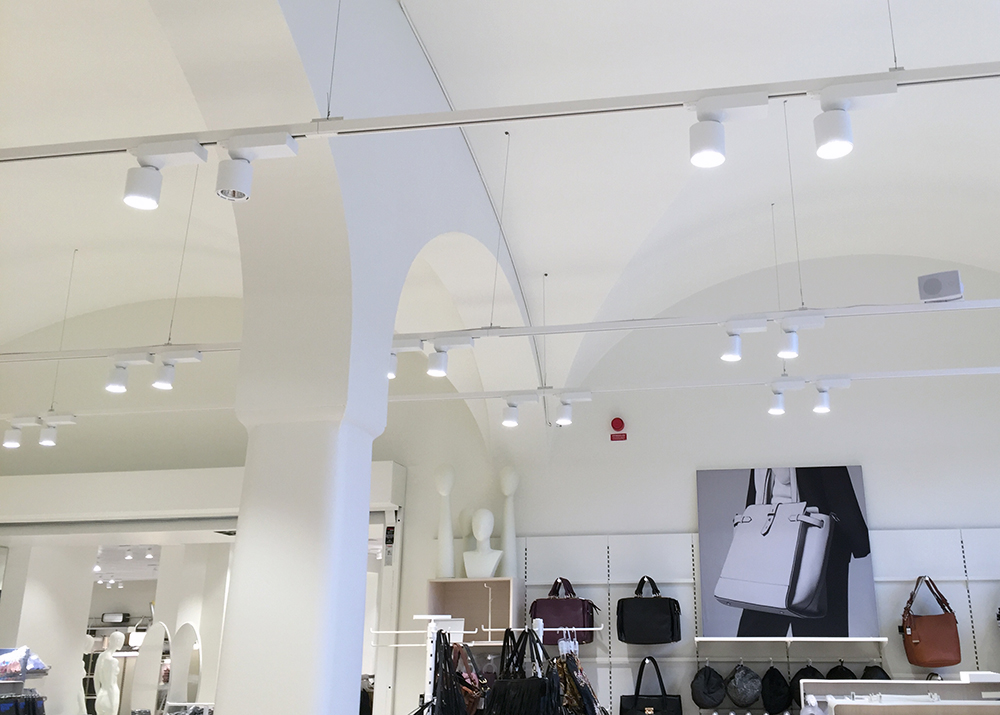

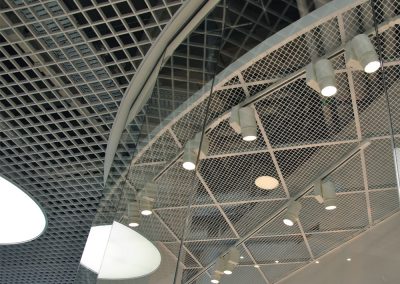

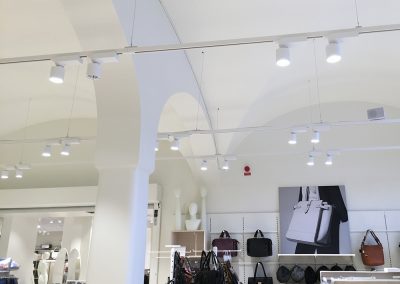

REFERENCES
