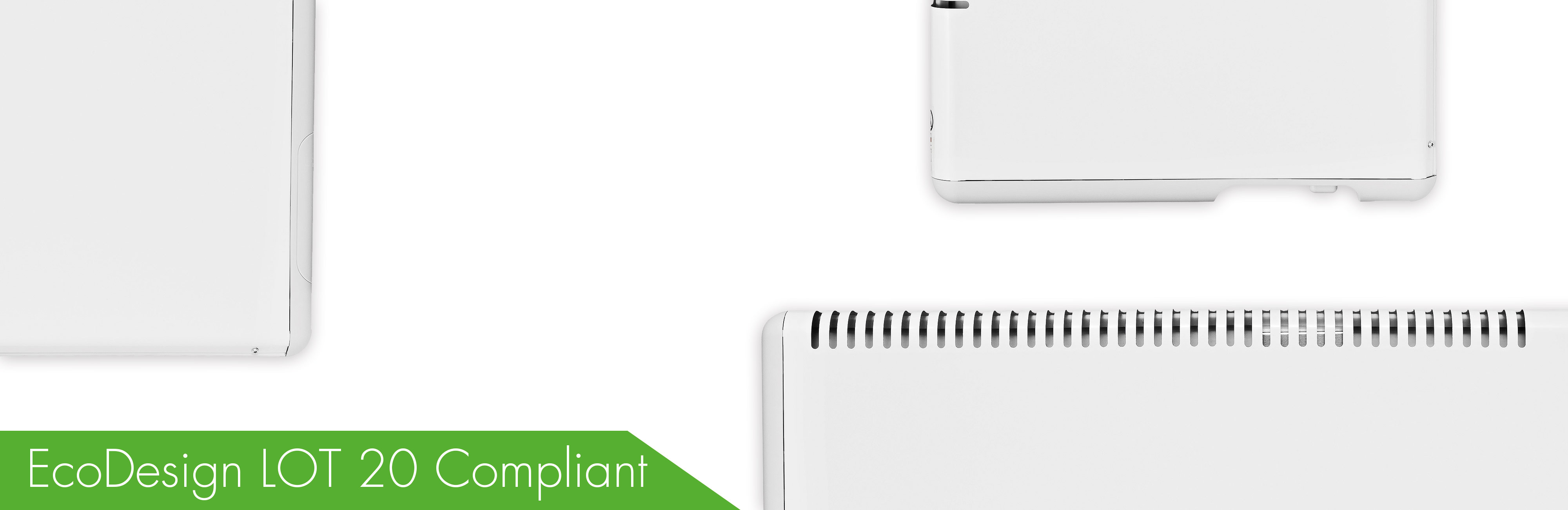

Tego Roundline Eco
The best in comfort and economy

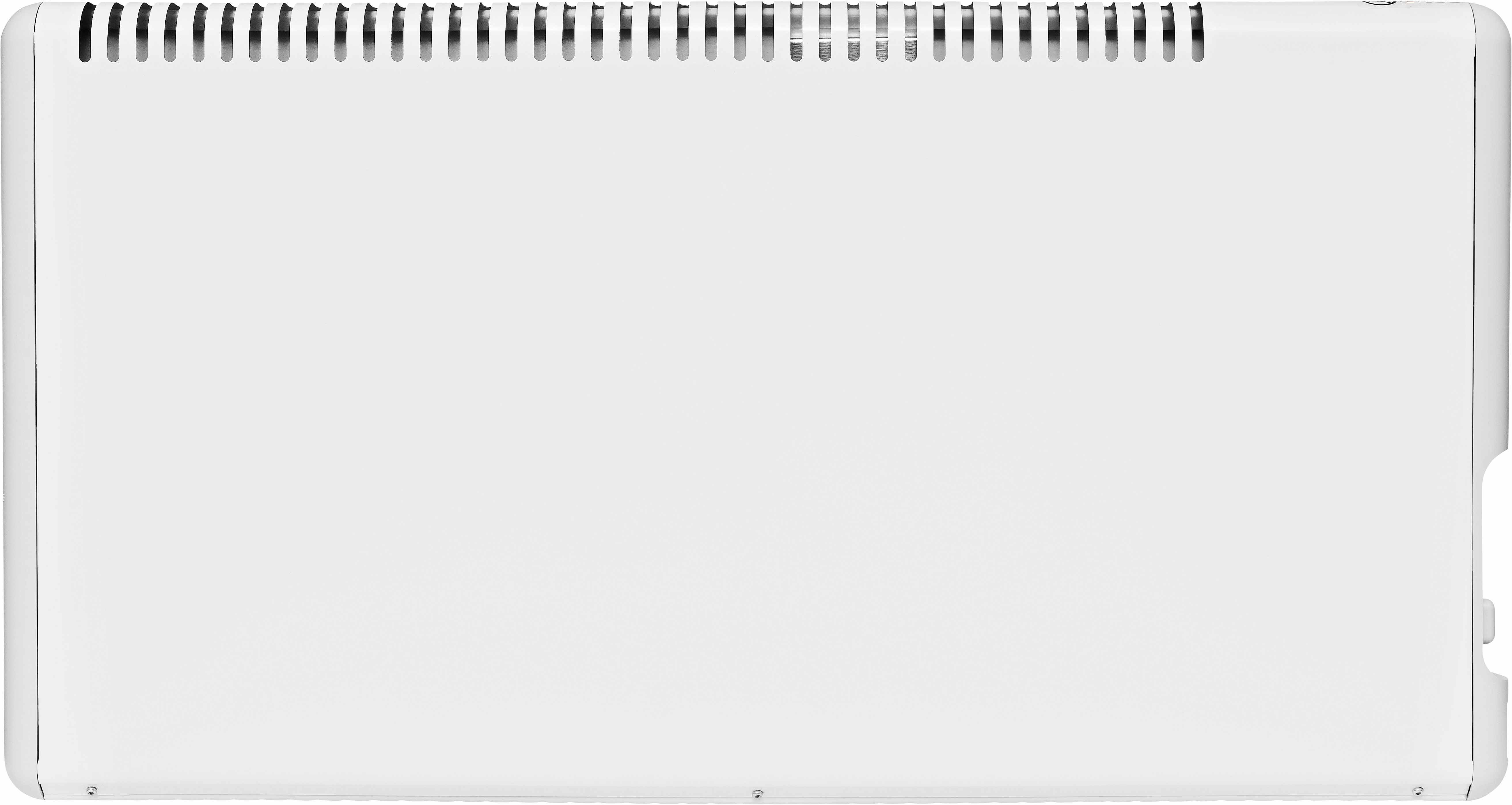

The electronic thermostat gives a temperature stability of ±0,1°C regardless of the outdoor temperature. When additional heat emerges in the room the heater shuts off completely before the temperature rises even ±0,5°C in the room. Roundline Eco has a smooth front. The end of the heater has a sinkage where the thermostat control, the power switch and the light emitting diode are placed.
The light emitting diode indicates which program is chosen and that the heater is turned on.
Drag the arrow over the image to see what Tego Roundline Eco looks like with the radio receiver in place.
(Does not apply to Eco 2000W)
Programs
Tego Roundline Eco comes with five pre-programmed programs.
- Day program, from the time the button is pressed the temperature is lowered by 3 degrees for 6 hours. This will repeat every 24 hours.
- Day program, from the time the buttion is pressed the temperature is lowered by 3 degrees for 8 hours. This will repeat every 24 hours.
- Week program, from the time the button is pressed the temperature is lowered by 3 degrees for 6 hours day 1-5. Day 6-7 no change in temperature.
- Week program, from the time the button is pressed the temperature is lowered by 3 degrees for 8 hours day 1-5. Day 6-7 no change in temperature.
- Week program, from the time the button is pressed the temperature is lowered by 3 degrees for 6 hours day 1-5. Day 6-7 the temperature is lowered by 3 degrees for 8 hours.
THERMOSTAT
Electronic
The thermostat provides a temperature stability of ±0.1°C independent of changes in external temperature.
Temperature range 5-35°C.
*ACCESSORIES
Wireless control system: Eco’s end-piece has a slot for a radio receiver.
The receiver communicates wirelessly with a control unit (wall-mounted).
Several radiators can be assigned to one control unit. Inside is an extra thermostat that detects any heat from passive sources (such as sunlight).
When the desired temperature is exceeded by 0.1°C the unit starts adjusting the radiators to maintain it.
*Does not apply to Eco 2000W. Can not be controlled remotely.
SAFETY
Roundline has a low surface temperature and is never hotter than ca. 70°C (at 230V/400V). In normal use (at 50 % capacity) this means ca. 35°C.
Roundline must not be covered. If it is, and the temperature inside the radiator becomes too high, an overheating failsafe activates.
The radiator has no sharp corners or edges.
INGRESS RATING
IP 21
MAINTENANCE
The smooth front is easy to keep clean.
Roundline is easy to swing out or detach when cleaning or renovating.
Vacuum from underneath the radiator.
WARRANTY
2 years
